The Dome Factory: Basuna Mosque Reclaims Tradition and Community with 108 Wind Catchers

Project Info

Project Name: Basuna Mosque

Architects: Dar Arafa Architecture

Location: Sohag, Egypt

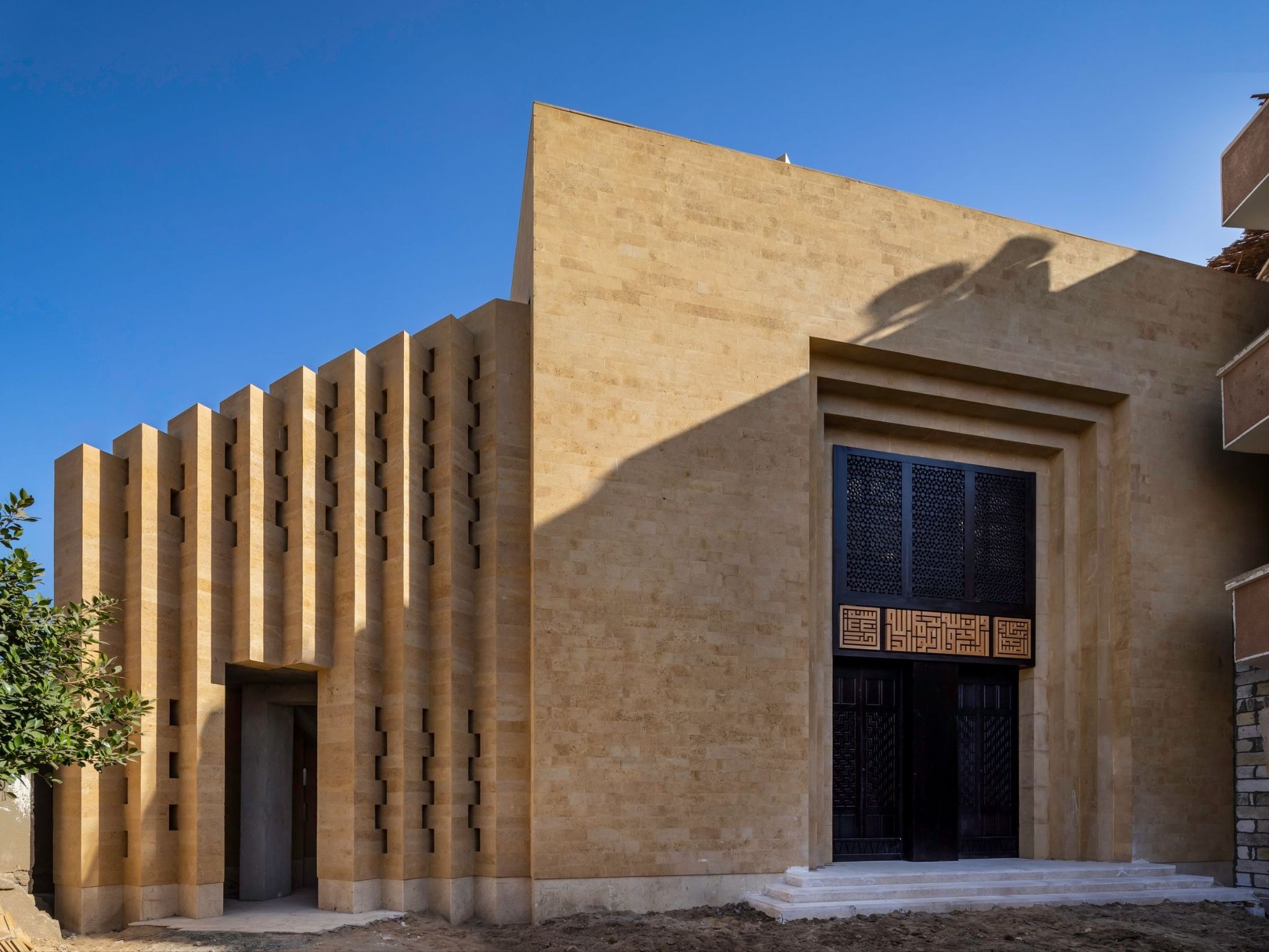

Rhythmic fins on the stone facade create a dynamic play of light and shadow

Reawakening the Community Heart: The Mosque as a Multi-functional Engine

The Basuna Mosque, nestled in a dusty, densely populated plot in Sohag, Egypt, is far more than a place of worship; it is an architectural manifesto by Dar Arafa Architecture, seeking to restore the mosque's ancient function as the central nervous system of the community. In contemporary village life, this means responding not only to spiritual needs but also to acute social and economic concerns.

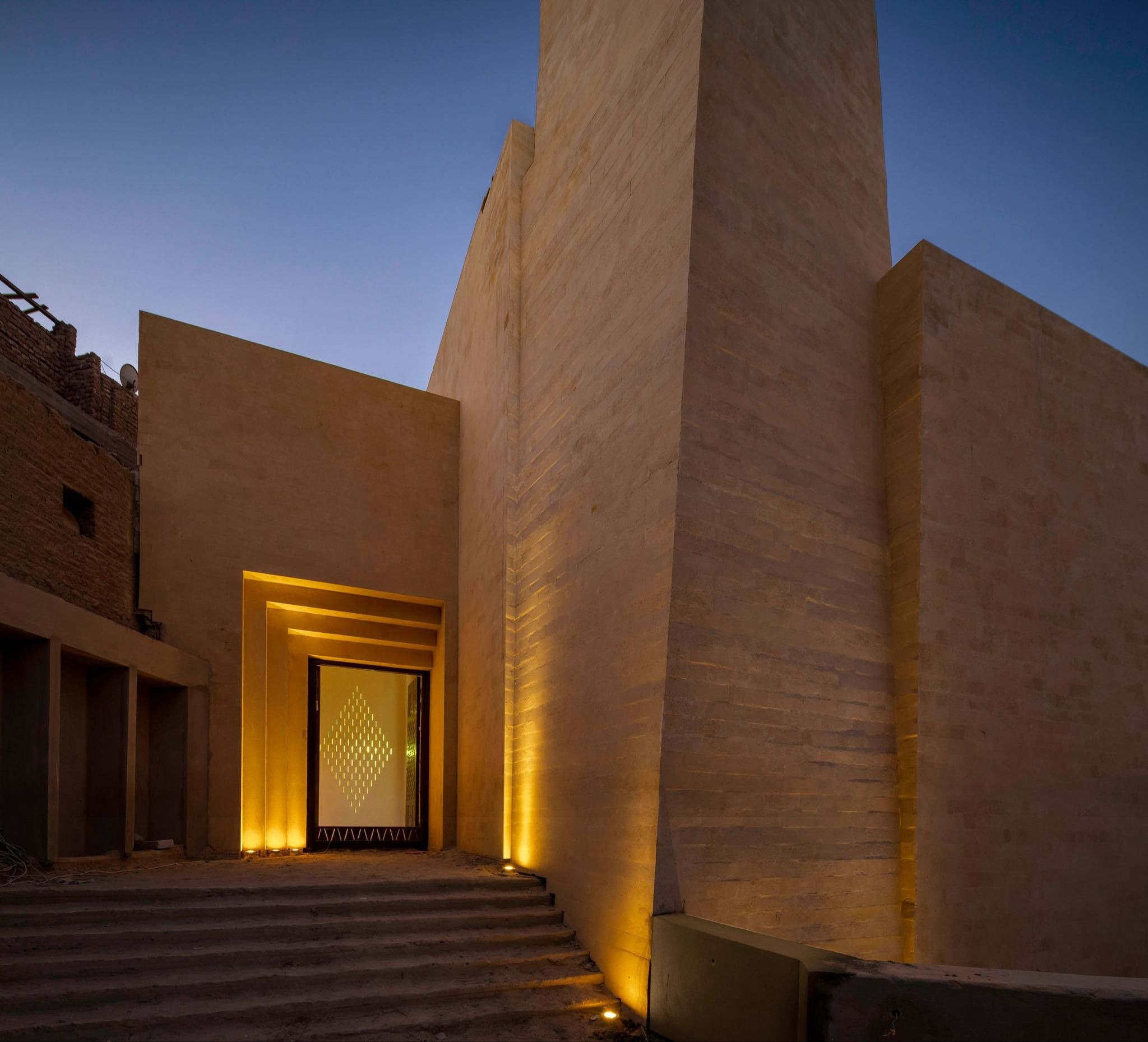

Warm uplighting accentuates the mosque's monolithic stone form at dusk

Waleed Arafa’s design masterfully addresses the tight site constraints and the extreme Egyptian heat by utilizing time-honored techniques in a strikingly modern form. The lower ground floor, intentionally designed with two separate entrances for men and women, transforms the space into a multi-purpose hall capable of hosting up to 200 people. This area can fluidly shift its function to accommodate various community needs: seasonal overflow for worshipers, temporary clinics, continuous learning classrooms, after-school activities, and social gatherings. This functional versatility ensures the mosque is an active asset to the village, fostering a deep sense of social cohesion.

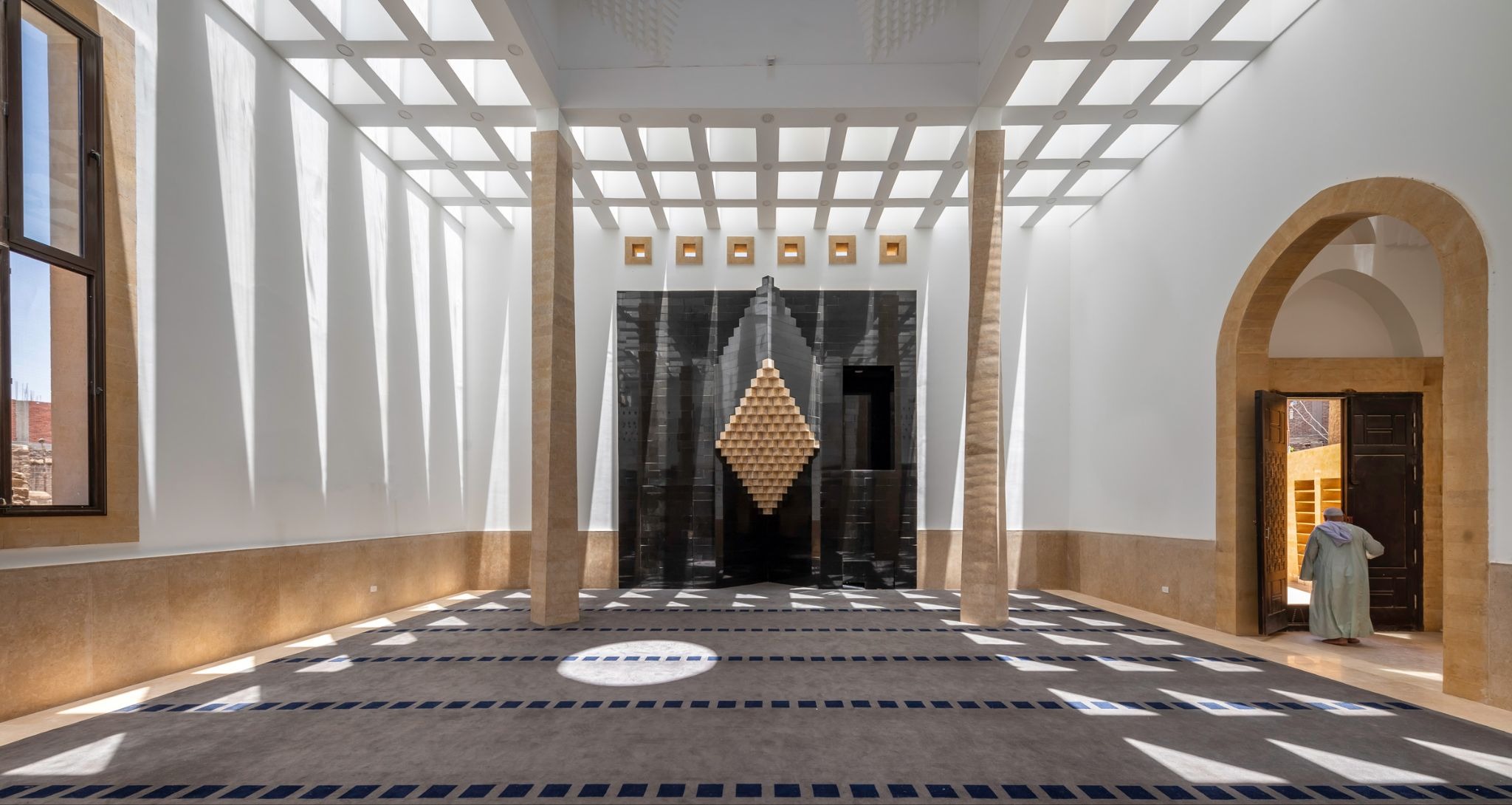

A gridded skylight casts geometric shadows, illuminating the modern, sculptural Mihrab

The Cube of Cubes: A Passive Climatic Solution

The defining genius of the Basuna Mosque lies in its roof—a dynamic landscape composed of 108 pendentive domes. Rather than adopting the typical large, singular dome seen in major city mosques, Dar Arafa utilized this repetition of small, geometric domes—a concept Arafa calls "The Cube of Cubes"—to solve complex climatic and structural problems simultaneously.

Each dome functions as a highly efficient passive device. Historically, domes and vaults were essential for cooling in Islamic architecture. Here, they are inverted and reconfigured:

Passive Illumination: The domes act as skylights, diffusing strong sunlight into a soft, ambient glow that minimizes the need for electrical lighting during the day.

Natural Ventilation (Wind Catchers): They are subtly designed to facilitate the stack effect, drawing hot air out from the interior spaces while simultaneously capturing and channeling cooler breezes down, naturally ventilating the prayer hall in the hot climate.

Rainwater Management: The domes also aid in directing rainwater, which is a rare but vital resource, for collection and reuse.

The central dome features an oculus that is covered with a translucent fabric during the blazing summer to control direct light, but is uncovered in winter, allowing a visual and spiritual connection between the interior space and the exterior sky.

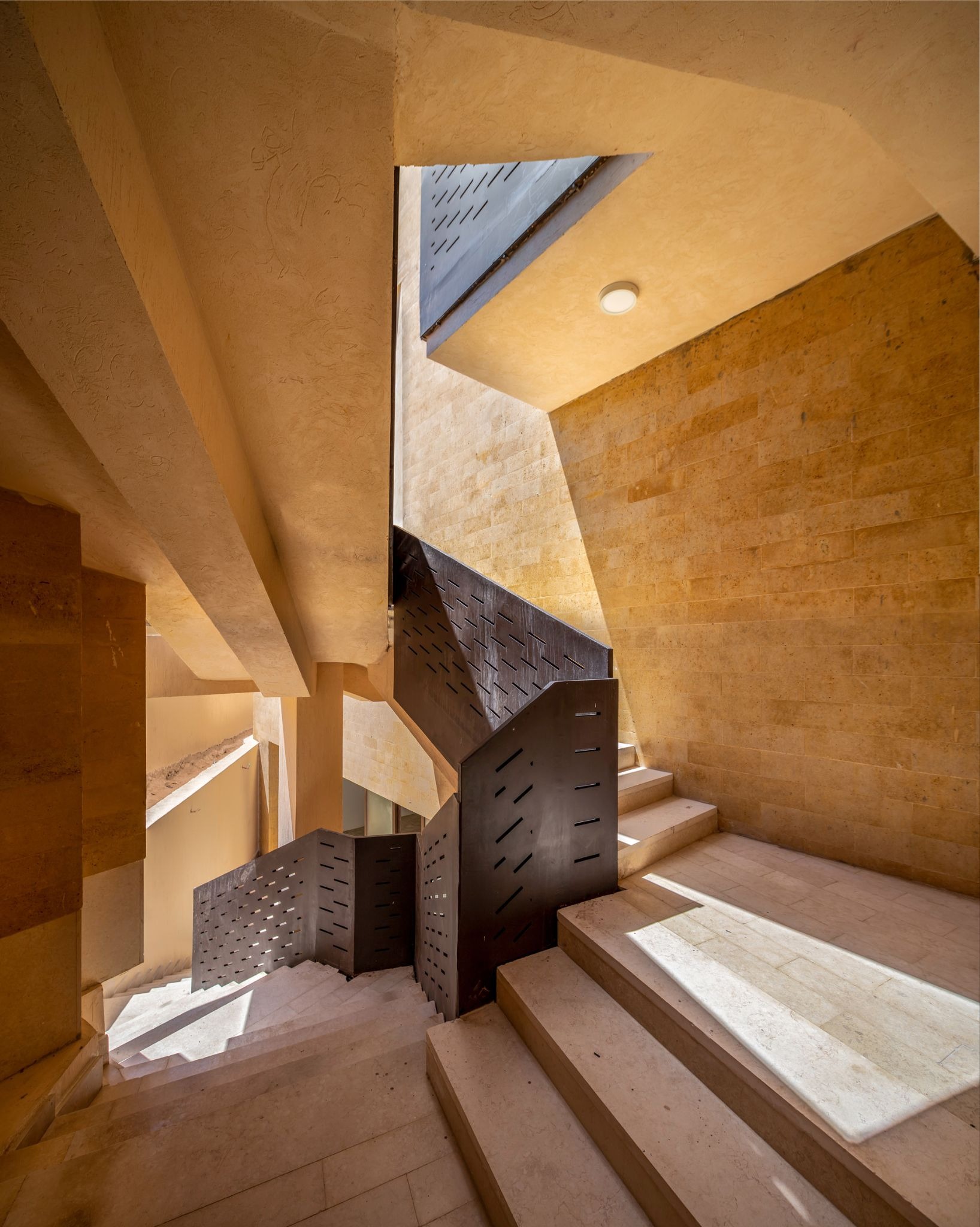

The main staircase is a sculptural void where light from above carves through the local stone and perforated metal railings

Material Honesty and Contextual Pride

The architectural language is rooted in material honesty. The majority of the building is constructed using durable masonry and local stone, anchoring it firmly in the regional building tradition. The minaret, standing 28.7 meters high, was a direct request from the Basuna villagers, symbolizing their pride and serving as a crucial landmark in the otherwise low-lying village. This single, powerful vertical element contrasts beautifully with the undulating horizontal rhythm of the 108 domes.

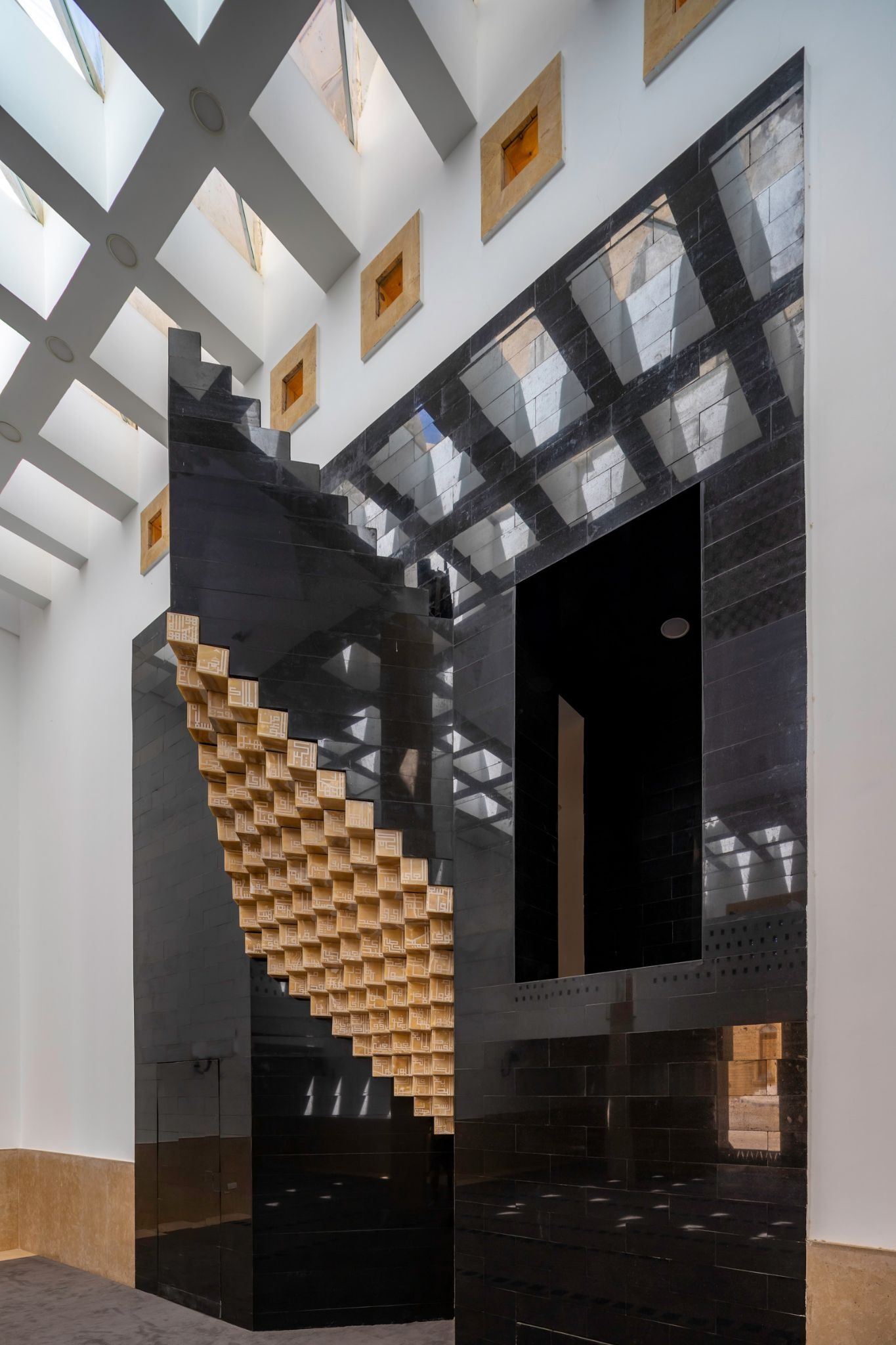

A sculptural golden brick stair creates a jewel-like contrast against the glossy black wall

By integrating robust community functions and employing a sophisticated, heritage-inspired passive climate system, the Basuna Mosque is a powerful contemporary model. It proves that religious architecture can be both an object of profound beauty and a sustainable, socially responsible engine for revitalization in rural contexts.

PHOTO CREDIT: Essam Arafa
